Posts, Beams, & Flanges                >>Posts>>Flanges



2

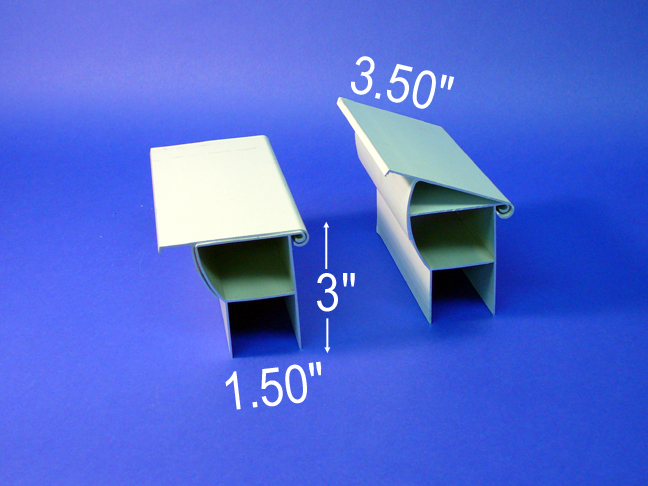

#732  1 ½"  2pc Setback/Swivel Beam

Part No: 73208,10,12,14,20,24

Lengths: 8',10',12',14',20',24'



Colors: White

Pieces per carton: 1



An extruded aluminum 2 pc. setback beam that adjust to the pitch of the awning. 1 1/2" posts fit inside bottom of beam.



3

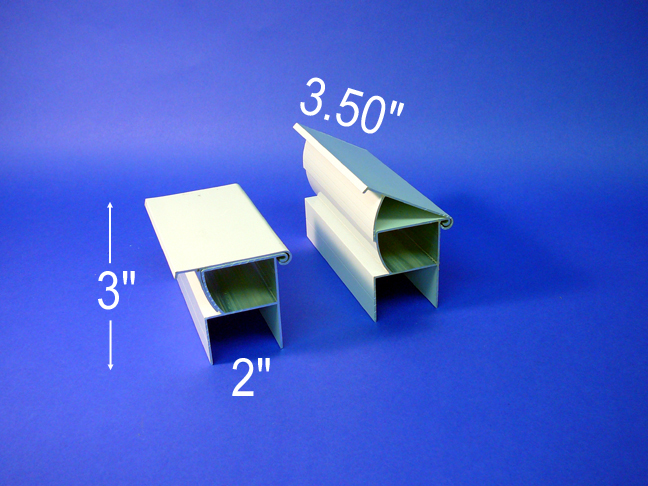

#733  2"  2pc Setback/Swivel Beam

Part No: 73308,10,12,14,20,24

Lengths: 8',10',12',14',20',24'



Colors: White

Pieces per carton: 1



An extruded aluminum 2 pc. setback beam that adjust to the pitch of the awning. 2" posts fit inside bottom of beam. The beams are also used with 2" screen rooms.

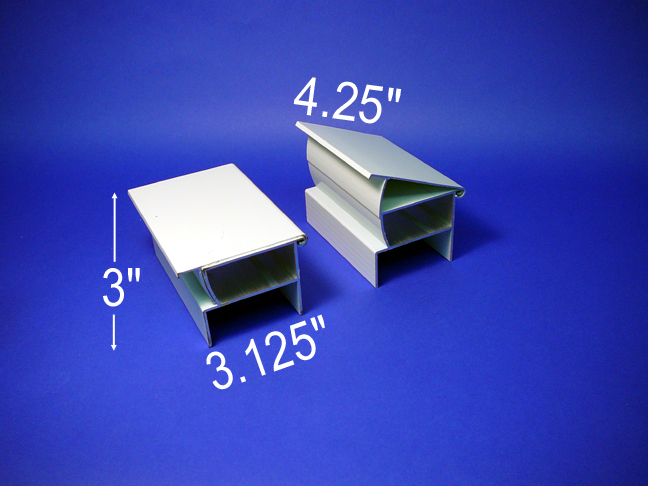

#733A  3"  2pc Setback/Swivel Beam

Part No: 733A08,10,12,14,20,24

Lengths: 8',10',12',14',20',24'



Colors: White

Pieces per carton: 1



An extruded aluminum 2 pc. setback beam that adjust to the pitch of the awning. 3" posts fit inside bottom of beam. The beams are also used with 3" insulated rooms.

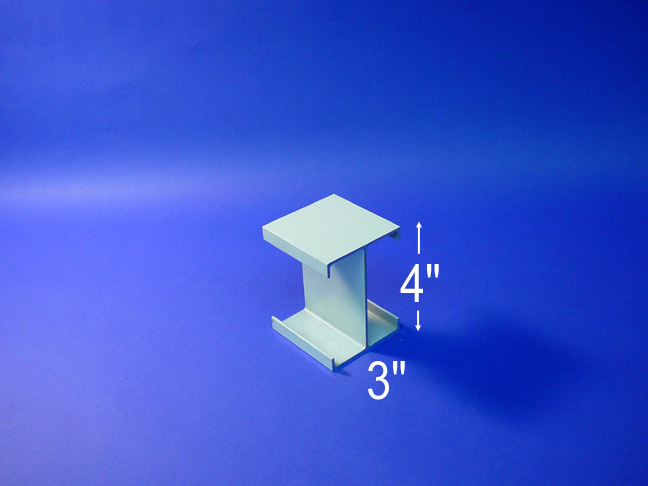

#734   3" x 4" Aluminum I Beam

Part No: 73408,10,12,14,20,24

Lengths: 8',10',12',14',20',24'



Colors: White

Pieces per carton: 1



An extruded aluminum I beam. 3" wide x 4" tall Heavy .095 wall thickness.





#735  3" x 7" Aluminum I Beam

Part No: 73508,10,12,14,20,24

Lengths: 8',10',12',14',20',24'



Colors: White

Pieces per carton: 1



An extruded aluminum I beam. 3" wide x 7" tall Heavy .095 wall thickness.





#730   2 ½" x 10" Aluminum C Beam

Part No: 73008,10,12,14,20,24

Lengths: 8',10',12',14',20',24'



Colors: White

Pieces per carton: 1



A heavy extruded aluminum C beam. .125" wall thickness, can be used as a single section or bolted "back to back" to form a strong "I" beam section.



#712  2" Over Head Support Kits

Part No: 71202,03,04,05,06,07,08

Lengths: 2',3',4',5',6',7',8'



Colors: White,Brown,Bronze,Clay

Pieces per carton: 1



Extruded 2"x2" square compression and tension struts are coupled with aluminum gusset plates and wall brackets allowing for a cover to be supported from above leaving total clearance below.
